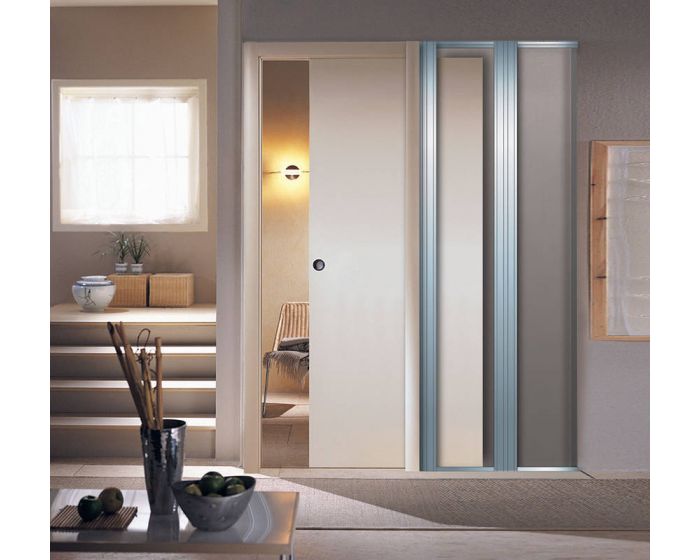

Scrigno Adjustable Sliding Pocket Door Kit - Single Door Kit - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit
Catalogue Number:
48729
- Scrigno adjustable single pocket door kit.
- 4 kits available to cover the 10 most popular UK door sizes.
- Suits doors 35mm - 44mm thick.
- Max door weight 120kg.
- Supplied with white melamine jamb kit.
Related Products
-
![Soft Close Damper To Suit Scrigno Adjustable Pocket Door Kit - Max Door Weight 35kg]()
Soft Close Damper To Suit Scrigno Adjustable Pocket Door Kit - Max Door Weight 35kgStarting at £76.76 £63.97
- The Scrigno (pronounced Scree-nio) adjustable pocket door kit is stud work based kit which can be cut down on site to suit common UK door sizes.
- The Scrigno kit has 7 pieces and is easily assembled on site by cutting away the pre-marked track and vertical stud work.
- Allows an interior door to slide and disappear into a "pocket" within the wall cavity.
- Each set includes all the main components needed to install a long lasting, smooth running sliding door including a stud work pocket which is used to create the wall cavity or "pocket" for the door to slide into.
- This high quality sliding door gear is suitable for residential and light commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall thickness of 125mm.
- Supplied as a kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
- Suitable for doors up to 120kg in weight.
- Suitable for use with timber doors only - door not included.
- The Scrigno kit is supplied complete with a white melamine timber lining jamb kit.
Accessories Available To Suit The Scrigno Adjustable Single Pocket Door Kit
- Soft close damper - to softly close the sliding door. - (sold separately product 48730).
Features & Benefits
- Space saving - sliding doors help create up to 8% more living more space within a property
- Quiet operation
- Easy installation
- Economical
- Can be cut on site to suit standard UK door sizes.
- Thanks to the €œsnap€ positioning system, size change is simple and error-proof.

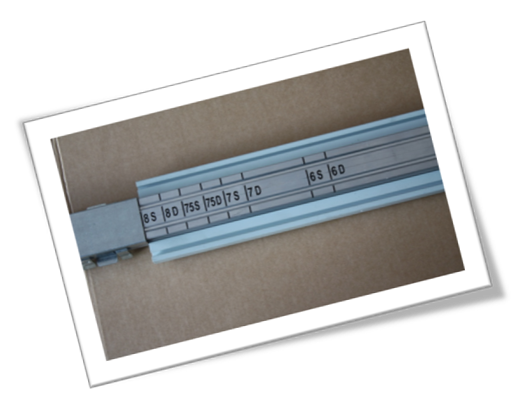

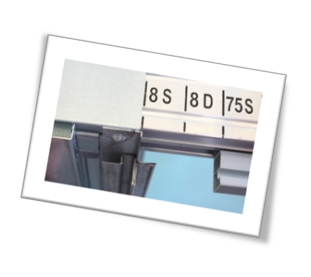

- Track and stud work is pre-marked to show the installer exactly where to cut for standard door sizes.

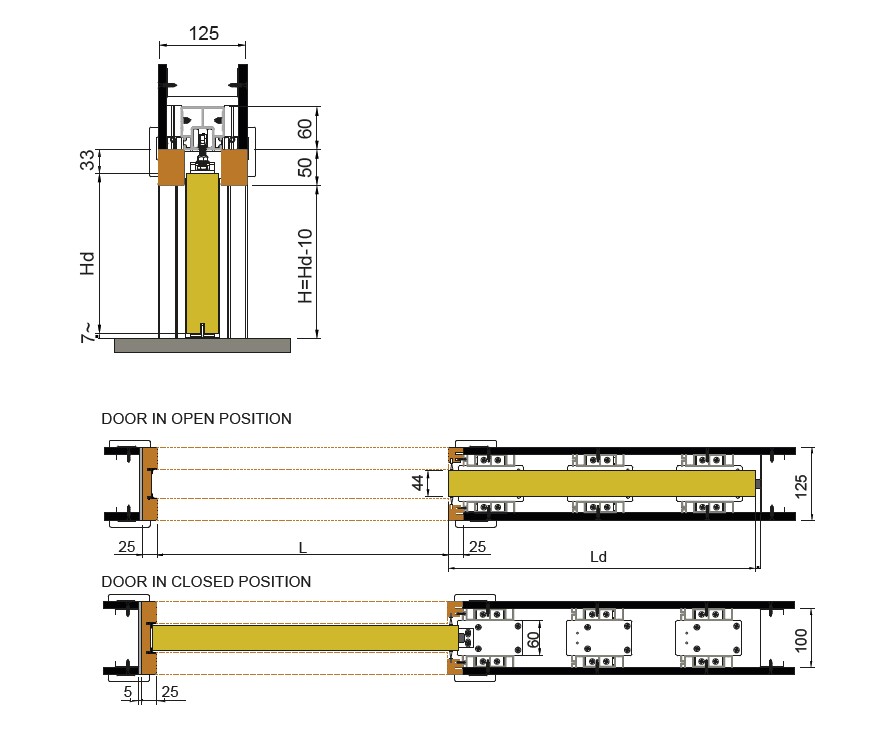

Dimensions - Frame Sizes & Door Kit Sizes Available
| Item Code | To Suit Door Widths (Dw) | To Suit Door Height (Hd) | Finished Wall Thickness |
|---|---|---|---|
| 48729.1 | 610mm / 686mm / 786mm | 1981mm | 125mm |
| 48729.2 | 838mm / 914mm | 1981mm | 125mm |
| 48729.3 | 626mm / 726mm / 826mm | 2040mm | 125mm |
| 48729.4 | 926mm / 1026mm | 2040mm | 125mm |
48729.1 - Constructed Frame Dimensions
| Door Widths (Ld) | Door Height (Hd) | Clear Passage Size (H x L) | Structural Opening (Overall Frame Size) | Cutting Mark |
|---|---|---|---|---|
| 610mm | 1981mm | 580mm x 1970mm | 1230mm x 2075mm | 1S |
| 686mm | 1981mm | 656mm x 1970mm | 1382mm x 2075mm | 2S |
| 762mm | 1981mm | 732mm x 1970mm | 1534mm x 2075mm | 3S* |
* Standard size in purchased kit no cutting required
48729.2 - Constructed Frame Dimensions
| Door Widths (Ld) | Door Height (Hd) | Clear Passage Size (H x L) | Structural Opening (Overall Frame Size) | Cutting Mark |
|---|---|---|---|---|
| 838mm | 1981mm | 808mm x 1970mm | 1686mm x 2075mm | 4S |
| 914mm | 1981mm | 884mm x 1970mm | 1838mm x 2075mm | 5S |
* Standard size in purchased kit no cutting required
48729.3 - Constructed Frame Dimensions
| Door Widths (Ld) | Door Height (Hd) | Clear Passage Size (H x L) | Structural Opening (Overall Frame Size) | Cutting Mark |
|---|---|---|---|---|
| 626mm | 2040mm | 600mm x 2030mm | 1270mm x 2135mm | 6S |
| 726mm | 2040mm | 700mm x 2030mm | 1470mm x 2135mm | 7S |
| 826mm | 2040mm | 800mm x 2030mm | 1670mm x 2135mm | 8S |
* Standard size in purchased kit no cutting required
48729.4 - Constructed Frame Dimensions
| Door Widths (Ld) | Door Height (Hd) | Clear Passage Size (H x L) | Structural Opening (Overall Frame Size) | Cutting Mark |
|---|---|---|---|---|
| 926mm | 2040mm | 900mm x 2030mm | 1870mm x 2135mm | 9S |
| 1026mm | 2040mm | 1000mm x 2030mm | 2070mm x 2135mm | 10S |
* Standard size in purchased kit no cutting required
Cutting Details

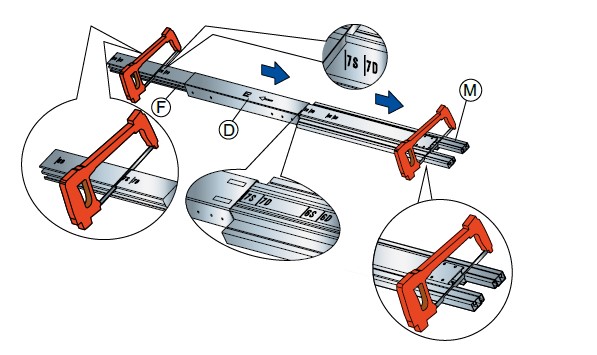

1. Cut track €œF€ to the desired size on the rear side €¢ Cut PVC profile bars €œM€ on the front side

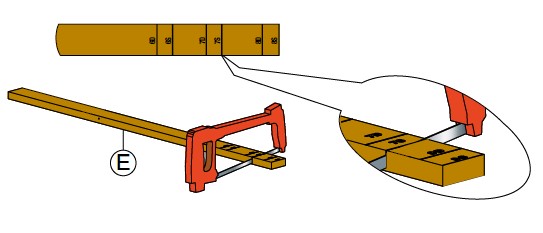

2. Cut the wooden spacer €œE€ to the desired size (see above charts)

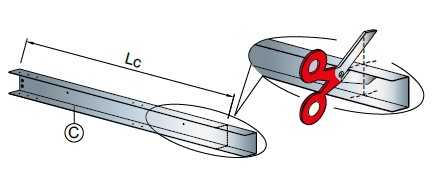

3. If necessary, cut the floor base profile bar €œC€ to be positioned on floor (see chart)
- Please note plasterboard is not provided with this kit and must be purchased separately.
Items Included Within The Scrigno Pocket Sliding Door Kit
- Metal stud work to create the "pocket"
- Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
- Roller bearing door hanger kit
- White melamine timber lining kit - (door jamb kit) including brush seals and rubber bumpers.
Installation Videos
| Item | 48729 |
|---|---|
| Item Code | 48729 |
| Finish | - |
| Dimensions | 125mm Finished Wall Thickness |
| Sold Per | Kit |
| Availability | Non stock product - sent direct from factory - please allow 2-3 working days for delivery |
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
-
