Single Riser Door Kit - Suitable For FD30 & FD60 Fire Doors - Satin Stainless Steel Ironmongery

Our single door riser kit is ideal to specify or purchase for single riser doors in blocks of flats, offices, schools, hotels and hospitals.

This key locking kit is supplied with a FB2 dead lock and cylinder pull.

High performance ironmongery including grade 14, concealed nylon bearing fire rated hinges (maintenance free with no grease).

Products tested for use on 30 minute FD30 and 60 minute FD60 timber fire rated doors and frames.

• Our FD30 kit is supplied with 1mm thick intumescent hinge pad liners
• Our FD60 kit is supplied with 2mm thick intumescent hinge pad liners.

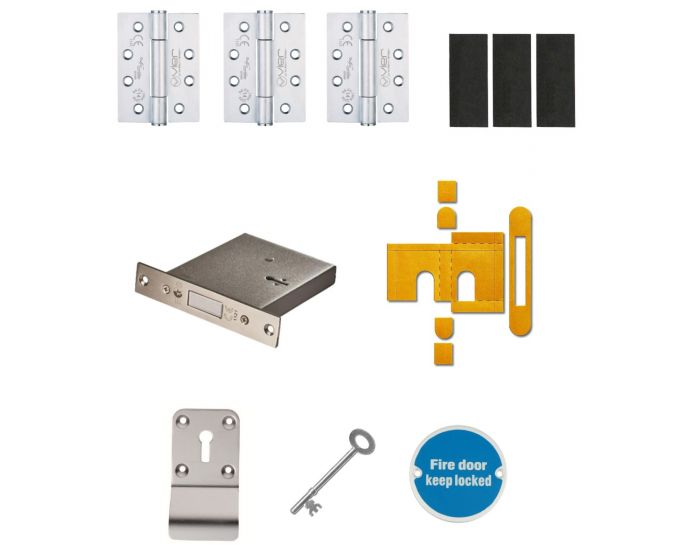

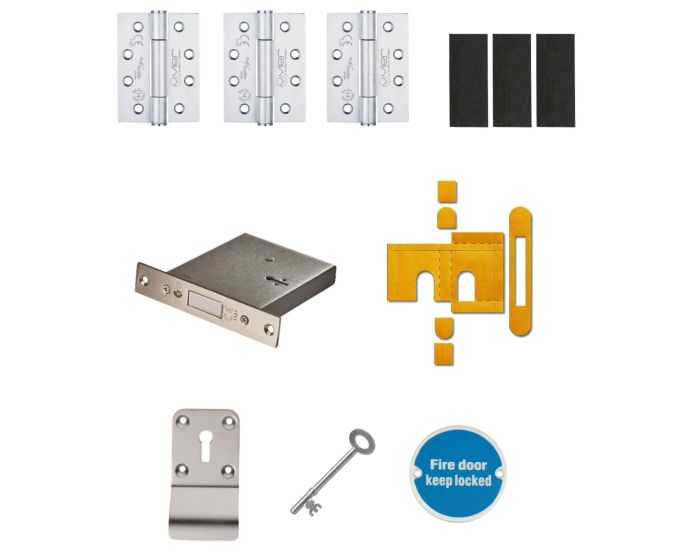

Items supplied in our FD30 fire door kit:

• 3 x (1.5 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel
• 6 x 40897.1 - Intumescent Hinge Pad Liners - 100mm x 30mm x 1mm - For Use On FD30 Fire Rated Doors - Monoammonium Phosphate
• 1 x 48211.1 - FB2 London Fire Brigade Dead Lock - FD30 / FD60 Fire Rated - CE Marked / UKCA Marked - 115mm Case Depth - (52mm Backset) - Satin Stainless Steel
• 1 x 48212.1 - FD30 / FD60 Intumescent Kit To Suit FB1 / FB2 Dead Lock
• 1 x 20650.2 - Fire Door Keep Locked - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background
• 1 x 40693.1 - FB2 Key To Suit The London Fire Brigade FB2 Dead Lock - Sold Individually (1 Key)

Items supplied in our FD60 fire door kit:

• 3 x (1.5 Pairs) - 41734.1 - Concealed Nylon Bearing Grade 14 Hinges - Self Lubricating - CE Marked / UKCA Marked - Fired Rated - Certifire Approved - 160kg Weight Limit - 102mm x 76mm - Satin Stainless Steel
• 6 x 40897.2 - Intumescent Hinge Pad Liners - 100mm x 30mm x 2mm - For Use On FD60 Fire Rated Doors - Monoammonium Phosphate
• 1 x 48211.1 - FB2 London Fire Brigade Dead Lock - FD30 / FD60 Fire Rated - CE Marked / UKCA Marked - 115mm Case Depth - (52mm Backset) - Satin Stainless Steel
• 1 x 48212.1 - FD30 / FD60 Intumescent Kit To Suit FB1 / FB2 Dead Lock
• 1 x 20650.2 - Fire Door Keep Locked - Circular Screw Fix Sign - Satin Stainless Steel Edge With Blue Background
• 1 x 40693.1 - FB2 Key To Suit The London Fire Brigade FB2 Dead Lock - Sold Individually (1 Key)

Please note although the above items have been fire tested and where required CE/ UKCA Marked, it's important to check the limitations or requirements of the fire test evidence for the fire door you are planning to install. Please call or email for further information.

Fire test certificates can be viewed and downloaded in the "Product Attachments Tab"
