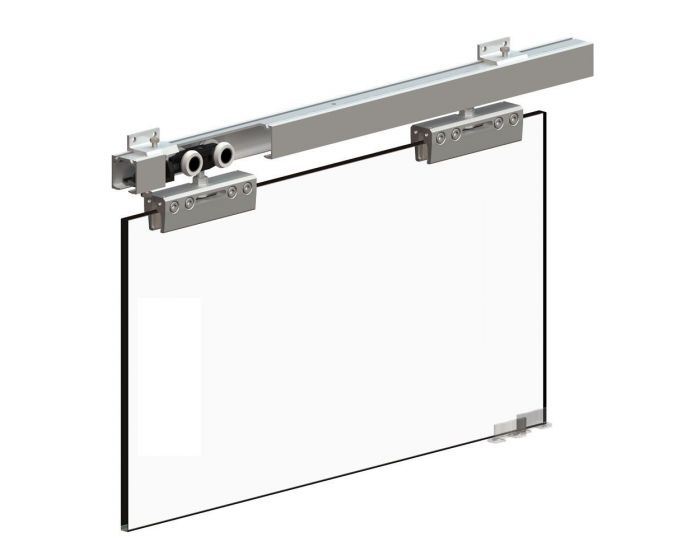

Sliding Door Gear System For 8-12mm Thick Glass Doors Up to 100kg In Weight

• The Glass sliding door system is designed for use on 8-12mm thick glass doors up to 100kg in weight.

• Suitable for use for glass sliding doors between rooms, wall openings or for entrances.

• Small one-piece glass clamp has unique design and is extremely easy to fit and adjust. The clamps have settings for 8, 10 and 12mm door thickness and includes self adhesive spacers.

• No need to cut or drill the glass, saving time and making installation much easier.

• Each set includes all the main components needed to install a long lasting, smooth running glass sliding door.

• Aluminium pre-drilled track for a durable, long lasting finish and easy installation. Track can be soffit / ceiling or wall mounted (wall brackets included).

• Hangers feature high quality ball bearing rollers for smooth and quiet running.

• Anti-jump system means wheels will always run smooth.

• Clear polycarbonate bottom guide - virtually invisible when installed.

Single Sliding Doors

Double Bi-Parting Doors

• Two kits can be fitted "end on" (next to each other) to allow for double doors.

Dimensions And Track Lengths Available

Track Dimensions

Fixing Options

• Designed for ceiling / soffit mounting as standard

• Supplied with wall mounting brackets to allow the track to be face fixed to the wall (included within the pack).

Clip On Pelmet Options

• Clip on wrap around aluminium pelmet for use with wall mounted tracks - Product 40869.

• Clip on bracket which allows for a custom made wooden pelmet to be fitted - Product 40865.

• 2 x clip aluminium pelmets used in conjunction with spacers for use when ceiling mounting the track - Product 40702.



Floor Guide

• The Glass sliding door kit comes complete with a universal floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.

Items Included Within The Glass Sliding Door Kit

• 1x Pre-drilled aluminium track
• 2x Glass clamps
• 2x Ball bearing roller carriages
• 2x Buffer door stoppers
• 1x Universal floor guide

Product Video
