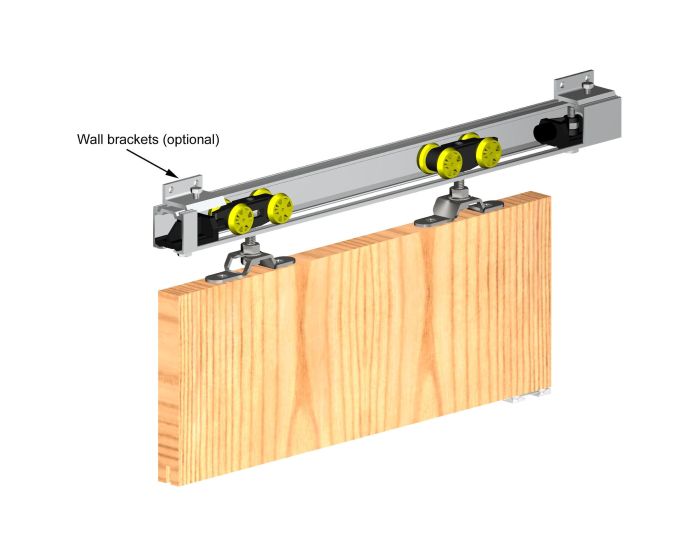

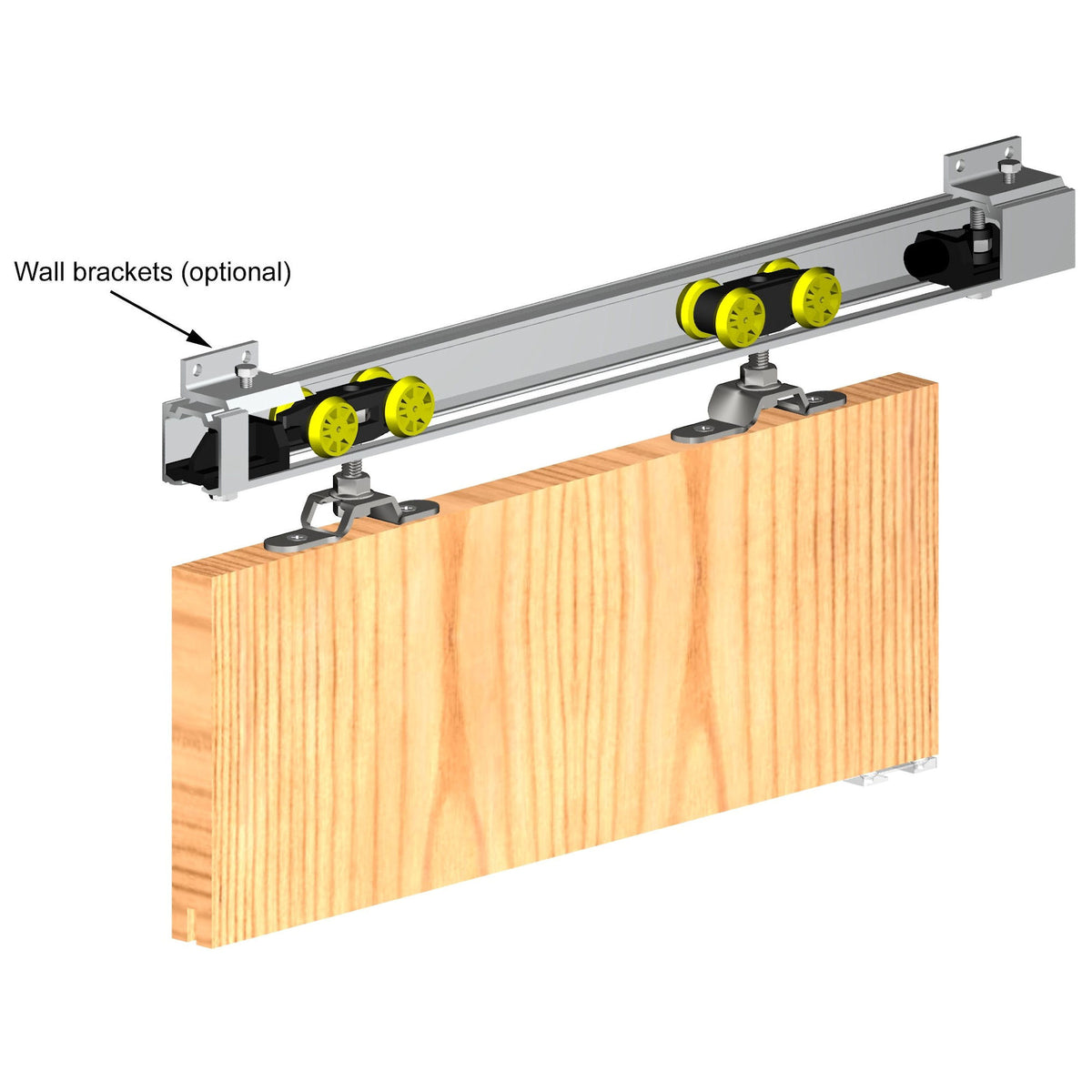

Sliding Door Gear System For Timber Doors Up to 60kg In Weight

• Sliding door system is designed for use on timbers doors up to 60kg in weight.

• Suitable for use for sliding doors between rooms, wall openings or for entrances.

• Each set includes all the main components needed to install a long lasting, smooth running soffit (ceiling) mounted sliding door.

• For wall mounting the track, wall mounted angle brackets must be purchased separately - see product 40278.

• Aluminium pre-drilled track for a durable, long lasting finish and easy installation.

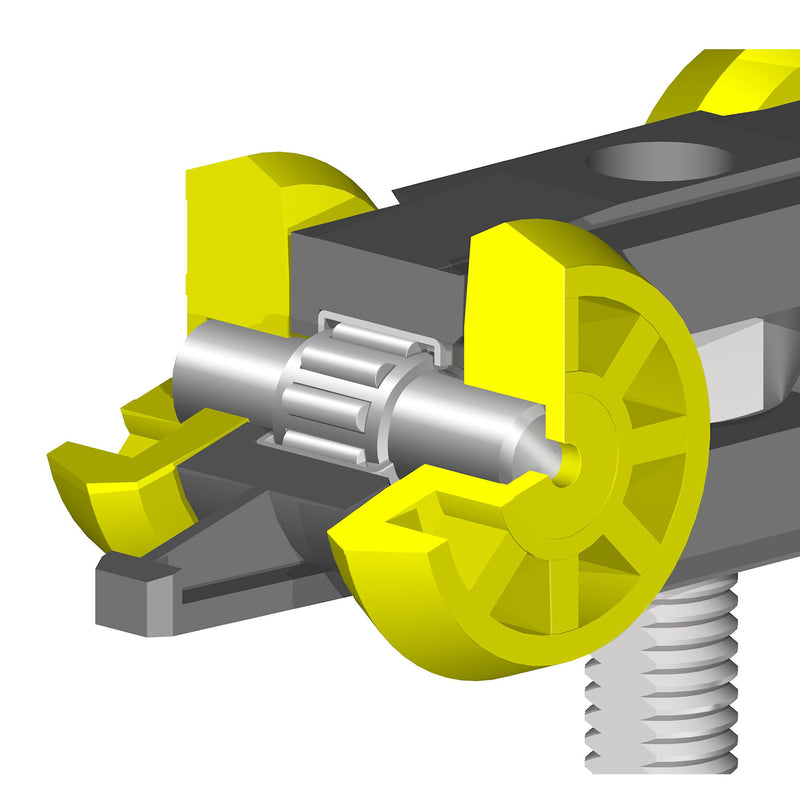

• Hangers feature high quality rollers mounted on needle bearings for smooth and quiet running.

• Anti-jump system means wheels will always run smooth.

• Clear polycarbonate bottom guide - virtually invisible when installed.

• Suitbale for use on timber or MDF doors

Single Sliding Doors

Double Bi-Parting Doors

• For doors up to 750mm wide a 3000mm track can  be purchased with the extra door hanging kit - Product 40867

• Foor doors over 750mm wide two kits can be fitted "end on" (next to each other) using the track joining bracket - Product 40864

Dimensions And Track Lengths Available

Track Dimensions

Fixing Options

• Designed for ceiling / soffit mounting as standard.

• For wall mounting - the brackets must be purchased separatley - see product 40278.

Clip On Pelmet Options

• Clip on wrap around aluminium pelmet for use with wall mounted tracks - Product 40869.

• Clip on bracket which allows for a custom made wooden pelmet to be fitted - Product 40865.

• 2 x clip aluminium pelmets used in conjunction with spacers for use when ceiling mounting the track - Product 40702.

Floor Guide

• The timber sliding door kit comes complete with a universal floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.

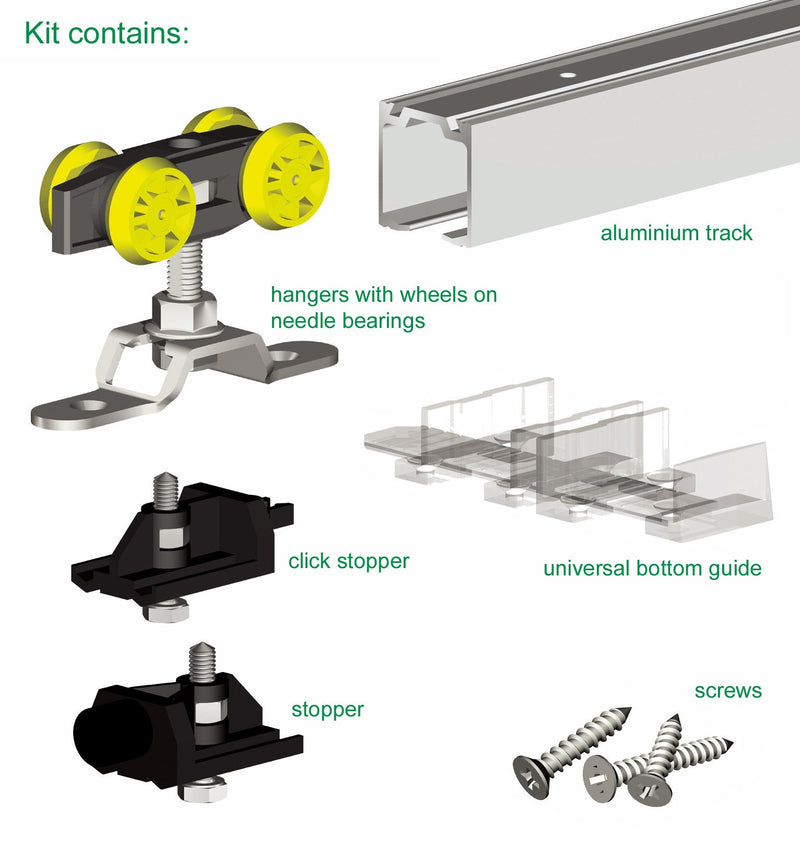

Items Included Within The Sliding Door Kit

• 1x Pre-drilled aluminium track
• 2x Needle bearing roller carriages
• 2x Buffer Door Stoppers
• 1x Universal floor guide

Optional Extras

• Soft close devices - Product 40276

• Double door synchronisation kit - Product 40277

Product Video
