Scrigno Adjustable Double Sliding Pocket Door Kit - To Suit Doors Up To 1026mm Wide And Up To 2700mm High - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit

Catalogue Number:

49776

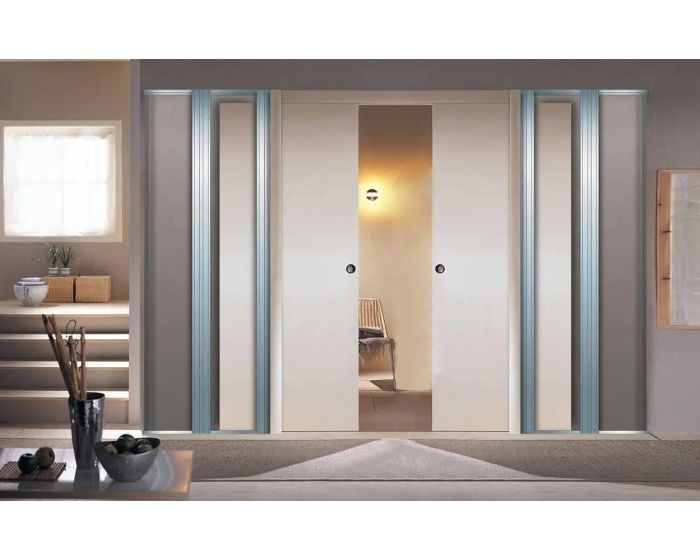

Scrigno adjustable double pocket door kit for large and oversized doors.

Designed to hang 2 x doors up to 1026mm wide (each) and up to 2700mm high.

Suits doors 35mm - 44mm thick.

Max door weight 120kg.

Supplied with white melamine jamb kit.

Full Description

Product Name Price Qty

49776.1 - Scrigno Adjustable Double Sliding Pocket Door Kit - To Suit Doors Up To 1026mm Wide And Up To 2700mm High - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit

£1,292.86 £1,026.08

Per Kit

Enquire Now

Description

The Scrigno (pronounced Scree-nio) adjustable pocket door kit is stud work based kit which can be adjusted on site to suit large double doors up to 1026mm wide and up to 2700mm high.

Allows an interior door to slide and disappear into a "pocket" within the wall cavity.

Each set includes all the main components needed to install a long lasting, smooth running double sliding doors including stud work pocket which is used to create the wall cavity or "pocket" for the door to slide into.

This high quality sliding door gear is suitable for residential and light commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall thickness of 125mm.

Supplied as a stud work kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.

Suitable for doors up to 120kg in weight.

Suitable for use with timber doors only - door not included.

The Scrigno kit is supplied complete with a white melamine timber lining jamb kit.

Diagram Shoing Scrigno Double Adjustable Pocket Door Kit Components

Accessories Available To Suit The Scrigno Adjustable Single Pocket Door Kit

Soft close damper - to softly close the sliding door. - (sold separately product 48730).

Features & Benefits

Space saving - sliding doors help create up to 8% more living more space within a property
Quiet operation
Easy installation
Economical
Suitable for two doors up to 1026mm wide and up to 2700mm high.
Track and stud work is pre-marked to show the installer exactly where to cut for standard door sizes.

Scrigno Adjustable Pocket Door Kit - Pre-Marked Cutting Positions

Dimensions - Frame Sizes & Door Kit Sizes Available

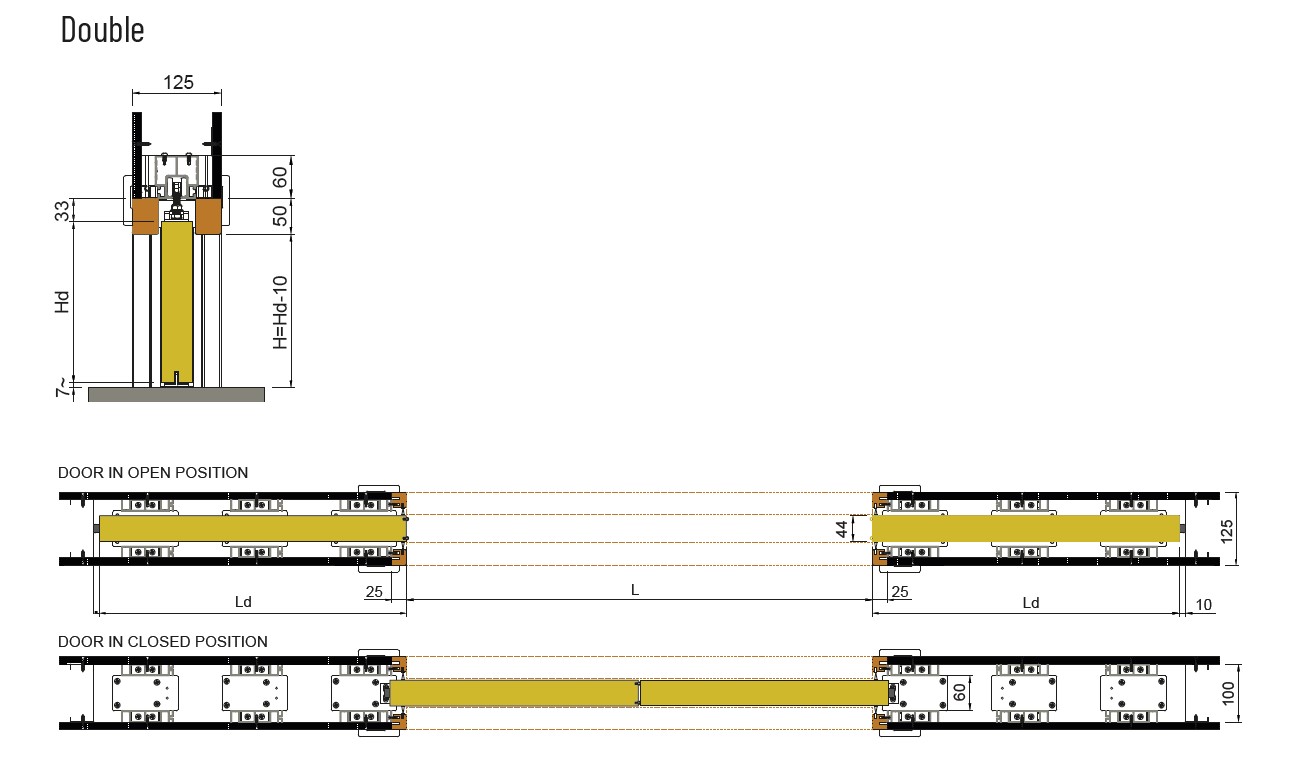

Dimensions of the Scrigno adjustable double sliding cassette pocket door system for large doors

Code	Door Widths (Ld)	Max Door Height (Hd)	Clear Passage Width (L)	Clear Passage Height (H)	Overall Frame Width	Overall Frame Height	Finished Wall Thickness
49775.1	2 x Doors Up To 626mm - 1026mm	2700mm	= 2 x Door Width (Ld) Minus 52mm	= Door Height (Hd) Minus 10mm	= Door Width (Ld) x 3.98	= Door Height (Hd) + 100mm	125mm

Cutting Details

1. Cut track “F” to the desired size on the rear side • Cut PVC profile bars “M” on the front side

Scrigno Adjustable Pocket Door Kit - Cutting The Stud Work Drawing

2. Cut the wooden spacer “E” to the desired size (see above charts)

Scrigno Adjustable Pocket Door Kit - Cutting The Timber Spacer

3. If necessary, cut the floor base profile bar “C” to be positioned on floor (see chart)

Scrigno Adjustable Pocket Door Kit - Cutting The Floor Channel

Please note plasterboard is not provided with this kit and must be purchased separately.

Items Included Within The Scrigno Pocket Sliding Door Kit

Metal stud work to create the "pockets"
Screws to fix plasterboard to metal frame - (Plasterboard not supplied)
Roller bearing door hanger kit
White melamine timber lining kit - (door jamb kit) including brush seals.

Installation Videos

Download

Download PDF Data Sheet

Specification

More Information
Item	49776
Item Code	49776
Finish	-
Dimensions	To Suit Double Doors Up To 1026mm Wide And Up To 2700mm High
Sold Per	Kit
Availability	2 Working Days - Long Length Item - Sent Direct From Supplier
