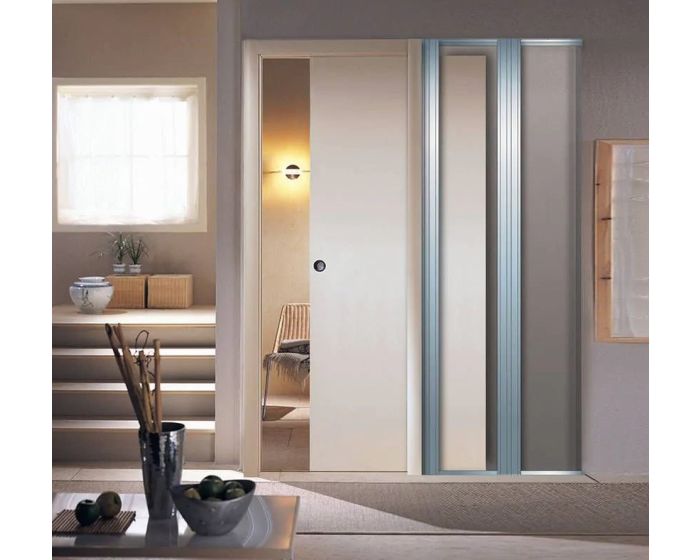

Scrigno Adjustable Single Sliding Pocket Door Kit - To Suit Doors Up To 1526mm Wide And Up To 2700mm High

Catalogue Number:
49775
  • Scrigno adjustable single pocket door kit for large and oversized doors.
  • Two kits available to cover the doors up to 1526mm wide and up to 2700mm high.
  • Suits doors 35mm - 44mm thick.
  • Max door weight 120kg.
  • Supplied with white melamine jamb kit.
Full Description
Product Name Price Qty
49775.1 - Scrigno Adjustable Single Sliding Pocket Door Kit - To Suit Doors Up To 626mm - 1026mm Wide And Up To 2700mm High - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit
£687.24 £545.43

Per Kit
49775.2 - Scrigno Adjustable Single Sliding Pocket Door Kit - To Suit Doors Up To 1026mm - 1526mm Wide And Up To 2700mm High - 125mm Finished Wall Thickness - Supplied With White Melamine Jamb Kit
£896.68 £711.65

Per Kit
Enquire Now
  • The Scrigno adjustable pocket door kit is stud work based kit which can be adjusted on site to suit large doors 1526mm wide and up to 2700mm high.
  • Allows an interior door to slide and disappear into a "pocket" within the wall cavity.
  • Each set includes all the main components needed to install a long lasting, smooth running pocket sliding door including a stud work pocket which is used to create the wall cavity or "pocket" for the door to slide into.
  • This high quality sliding door gear is suitable for residential and light commercial applications. The unique design allows doors between 35mm-45mm thick to be installed with a finished wall thickness of 125mm.
  • Supplied as a stud work kit to create the pocket, which can be fully fitted in under 60 minutes by a skilled installer.
  • Suitable for doors up to 120kg in weight.
  • Suitable for use with timber doors only - door not included.
  • The Scrigno single sliding door kit is supplied complete with a white melamine timber lining jamb kit.

Diagram Scrigno Adjustable Pocket Door Kit Components

Benefits

  • Space saving - sliding doors help create up to 8% more living more space within a property
  • Quiet operation
  • Easy installation
  • Economical
  • Suitable for doors up to 1526mm wide and up to 2700mm high.
  • Track and stud work is pre-marked to show the installer exactly where to cut for standard door sizes.

Matching Accessories

Scrigno Adjustable Pocket Door Kit - Pre-Marked Cutting Positions Scrigno Adjustable Pocket Door Kit - Pre-Marked Cutting Positions



Dimensions - Frame Sizes & Door Kit Sizes Available

Dimensions of the Scrigno single sliding cassette pocket door system for large doors



Code Door Widths (Ld) Max Door Height (Hd) Clear Passage Width (L) Clear Passage Height (H) Overall Frame Width Overall Frame Height Finished Wall Thickness
49775,1 626mm - 1026mm 2700mm = Door Width (Ld) Minus 26mm = Door Height (Hd) Minus 10mm = Door Width (Ld) x 2.01 = Door Height (Hd) + 100mm 125mm
49775.2 1026mm - 1526mm 2700mm = Door Width (Ld) Minus 26mm = Door Height (Hd) Minus 10mm = Door Width (Ld) x 2.01 = Door Height (Hd) + 100mm 125mm





Cutting Details

1. Cut track “F” to the desired size on the rear side • Cut PVC profile bars “M” on the front side

Scrigno Adjustable Pocket Door Kit - Cutting The Stud Work Drawing



2. Cut the wooden spacer “E” to the desired size (see above charts)

Scrigno Adjustable Pocket Door Kit - Cutting The Timber Spacer



3. If necessary, cut the floor base profile bar “C” to be positioned on floor (see chart)

Scrigno Adjustable Pocket Door Kit - Cutting The Floor Channel




  • Please note plasterboard is not provided with this kit and must be purchased separately.


Items Included Within The Scrigno Sliding Pocket Door Kit

  • Metal stud work to create the "pocket"
  • Screws to fix plasterboard to metal frame (plasterboard not supplied)
  • Roller bearing door hanger kit
  • White melamine timber lining kit - (door jamb kit) including brush seals and rubber bumpers.

Installation Videos

More Information
Item 49775
Item Code 49775
Finish -
Dimensions To Suit Doors Up To 1500mm Wide And Up To 2700mm High
Sold Per Kit
Availability 2 Working Days - Long Length Item - Sent Direct From Supplier

Longh Length Item - Sent Direct From Supplier - Lead Time 2 Working Days
