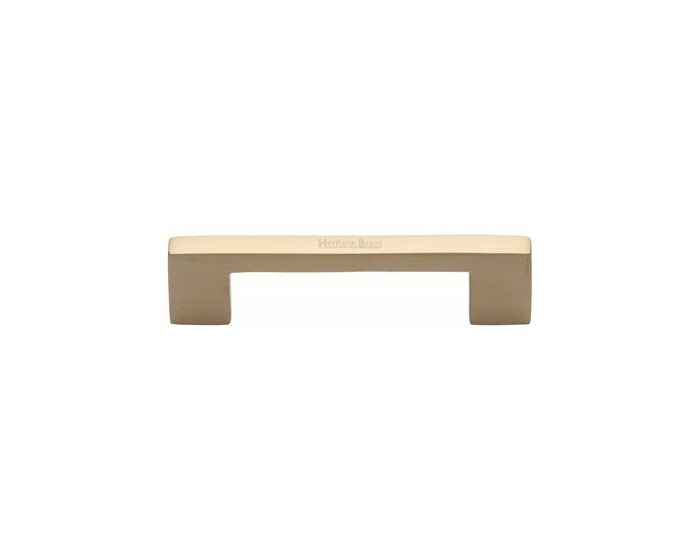

Slim Rectangular Section Cupboard Door / Drawer Pull Handle - Available In Seven Sizes - Satin Brass (Lacquered)

Catalogue Number:

43631

Product Name Price Qty

43631.1 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 116mm Length (96mm Fixing Centres) - Satin Brass (Lacquered) - Each

£14.52 £12.10

Per Each

43631.2 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 148mm Length (128mm Fixing Centres) - Satin Brass (Lacquered) - Each

£16.57 £13.81

Per Each

43631.3 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 172mm Length (160mm Fixing Centres) - Satin Brass (Lacquered) - Each

£18.64 £15.53

Per Each

43631.4 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 212mm Length (192mm Fixing Centres) - Satin Brass (Lacquered) - Each

£20.20 £16.83

Per Each

43631.5 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 274mm Length (256mm Fixing Centres) - Satin Brass (Lacquered) - Each

£24.85 £20.71

Per Each

43631.6 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 340mm Length (320mm Fixing Centres) - Satin Brass (Lacquered) - Each

£39.00 £32.50

Per Each

43631.7 - Slim Rectangular Section Cupboard Door / Drawer Pull Handle - 500mm Length (480mm (240mm - 240mm) Fixing Centres) - Satin Brass (Lacquered) - Each

£88.49 £73.74

Per Each

Enquire Now

Description

Slim rectangular section cabinet pull handle

Supplied with M4 fixing bolts

Ideal for use on contemporary units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Size Details

Available In Seven Sizes

Item code	Length	Width	Fixing Centres	Base Size	Projection
43631.1	106mm	10mm	96mm	20mm x 10mm	30mm
43631.2	128mm	10mm	128mm	20mm x 10mm	30mm
43631.3	172mm	10mm	160mm	20mm x 10mm	30mm
43631.4	212mm	10mm	192mm	20mm x 10mm	30mm
43631.5	256mm	10mm	256mm	20mm x 10mm	30mm
43631.6	340mm	10mm	320mm	20mm x 10mm	30mm
43631.7	500mm	10mm	480mm*	20mm x 10mm	30mm

*43631.7 Fixing Centres Below*

Slim-Rectangular-Section-Cupboard-Pull-Handle-Diagram

Base Material

Made from solid brass

Finish Details

Satin nickel

Fixings

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors

Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

Usage

Suitable for internal use

Unit Of Sale

This cabinet handle is sold individually - (Each)

Download

Download PDF Data Sheet

Specification

More Information
Item	43631
Item Code	43631
Finish	Satin Brass (Lacquered)
Dimensions	Available In Seven Sizes
Fire Rated	Non Fire Rated
Sold Per	Each
Availability	Non stock product - Please allow 2-4 days for delivery
