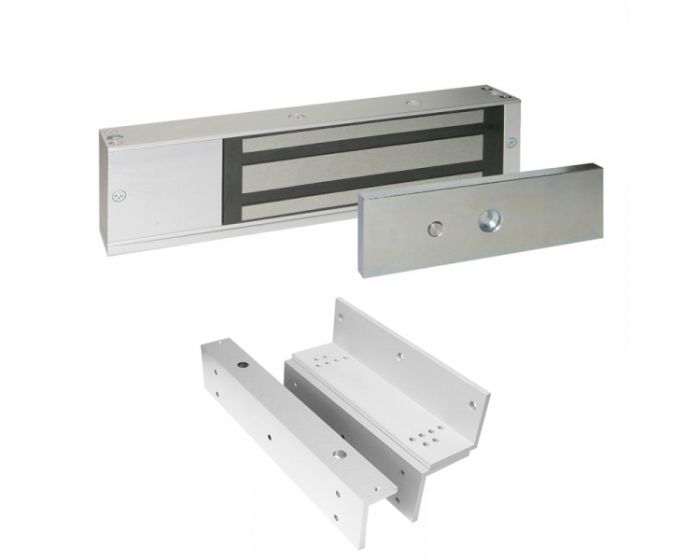

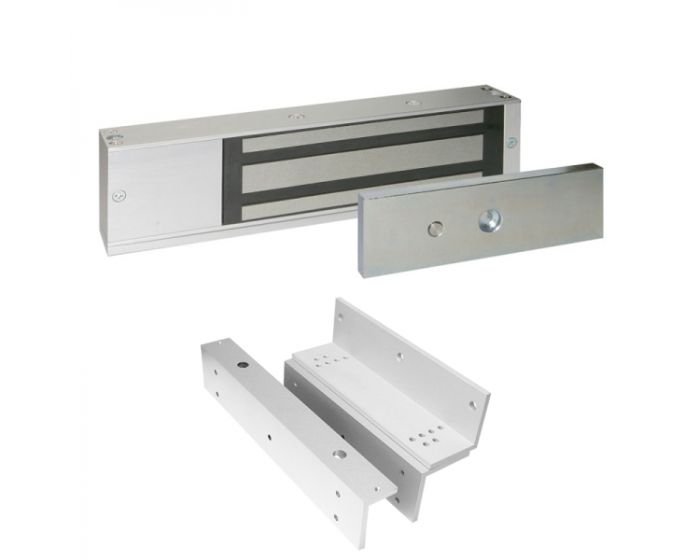

Slimline Single Magnet Supplied With Z & L Brackets - Tested to Grade 2 TS010:2016 - Fire Rated FD30 / FD60 Timber Doors - 12/24v DC

• The Deedlock slimline range of mini Electro-magnetic locks have been fully tested to TS010:2016 and meet the requirements of grade 2 holding force. The comprehensive system of low profile magnets are suitable for secondary security or low to medium security on internal doors.

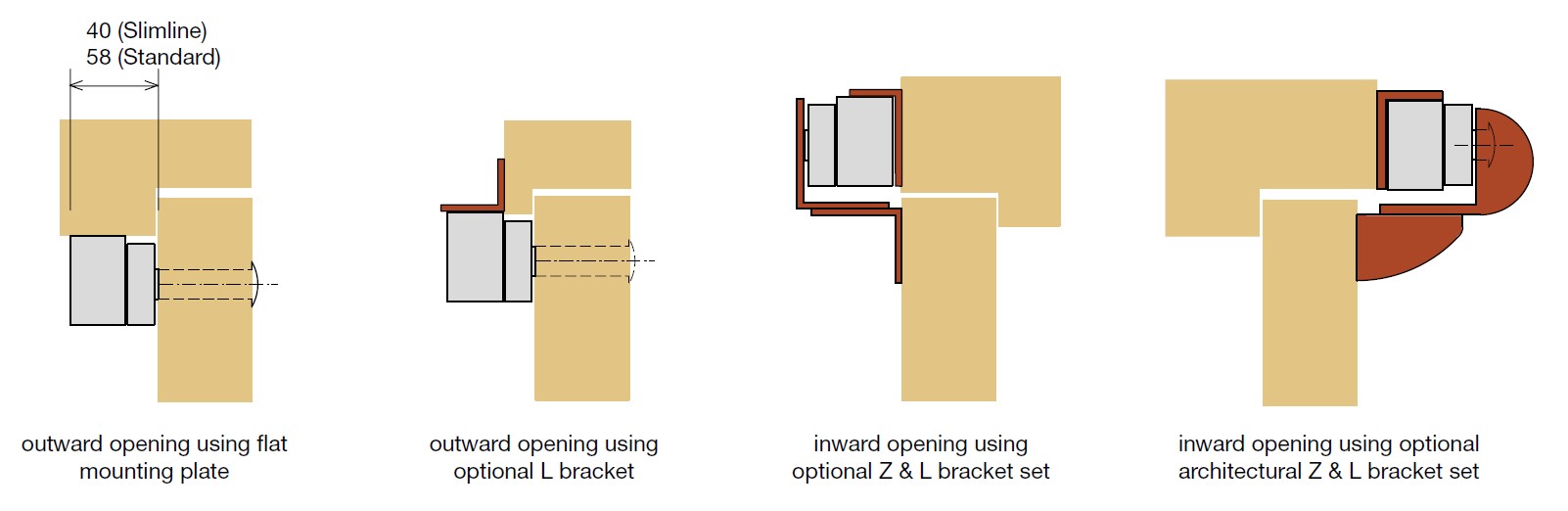

• A number of accessories are available, including; Z & L brackets for inward opening doors, L bracket for outward opening doors.

Features

• CE Marked / UKCA Marked
• Low maintenance with no moving parts
• Safety bolts prevent the magnet from detaching from the bracket itself
• Dual voltage 12 / 24V DC
• Suitable for single or double doors, Inward or outward opening
• Time delay option available
• Satin anodised aluminium finish
• For medium usage traffic applications
• Minimum Holding Force: Grade 2 - 2000N (450lbs/f)
• Tested Holding Force: 2090N (470lbs/f) (213 kg/f)

Certification

• TS010:2016 – Report Number WTE-16-030
• Classification Code:
  - Monitored 3-7-B-1-3-2-2-A
  - Unmonitored 3-7-B-1-3-2-0-A
• Fire rated to EN1634-1 on Timber Doors
  for 30 & 60 minutes - When fitted with 49675.1 - Intumescent Graphite Sleeve
• EN61000-6-3:2007 + A1:2011
• EN61000-6-1:2007

Finish

• Satin Stainless Steel

Size Information

• 500mm x 47mm

Fixings

• Supplied with matching screws.

Unit Of Sale

• Sold individually - Each

Related product

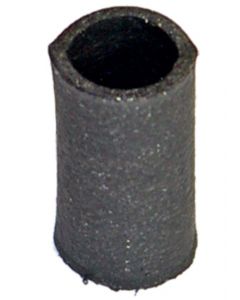

• 49675.1 - Intumescent Graphite Sleeve For Single Face To Face Electromagnetic Locks - Tested For Use With FD30 / FD60 Fire Doors
