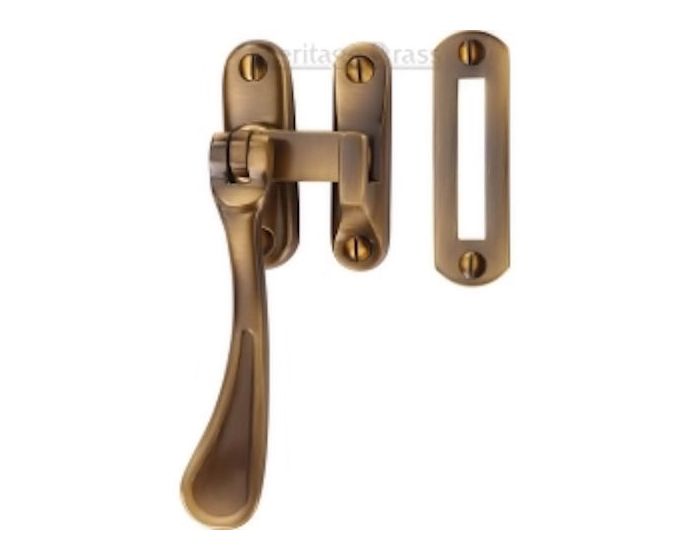

Spoon End Design - Reversible Casement Window Fastener - Antique Brass (Gloss Lacquered)

Catalogue Number:
42862
Full Description
Product Name Price Qty
42862.1 - Spoon End Design - Reversible Casement Window Fastener - Antique Brass (Gloss Lacquered)
£21.46 £17.88

Per Each
Enquire Now
  • 21613.1 reversible casement window fastener
  • Spoon shape design end
  • A casement fastener is fixed on the side of the window and is the handle used to keep the window closed
  • This fastener is reversible so can be used on windows hung on the left or right

Finish

  • Light Antique Brass

Dimensions

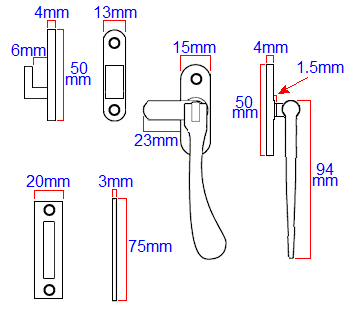

Diagram showing dimensions of the prima lightweight window fastener - 125 range


  • Back Plate - Height - 50mm x Width 15mm
  • Handle Length - 94mm
  • Tag Length - 23mm
  • Distance Between Back Plate And Back Of Tag (Step Distance) - 1.5mm
  • Mortice Plate - Height 75mm x Width 20mm
  • Hook Plate - Height 50mm x Width 13mm

Important Info Before You Buy

  • Suitable for wooden windows
  • Comes supplied with mortice plate and hook plate
  • For standard outward opening windows the mortice plate is used
  • For double windows or where the fame and window sit flush the hook plate is used
  • Comes supplied with fixing screws
  • Matching window stay to open and close the window also available
More Information
Item 42862
Item Code 42862
Finish Antique Brass (Gloss Lacquered)
Fire Rated Non Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
