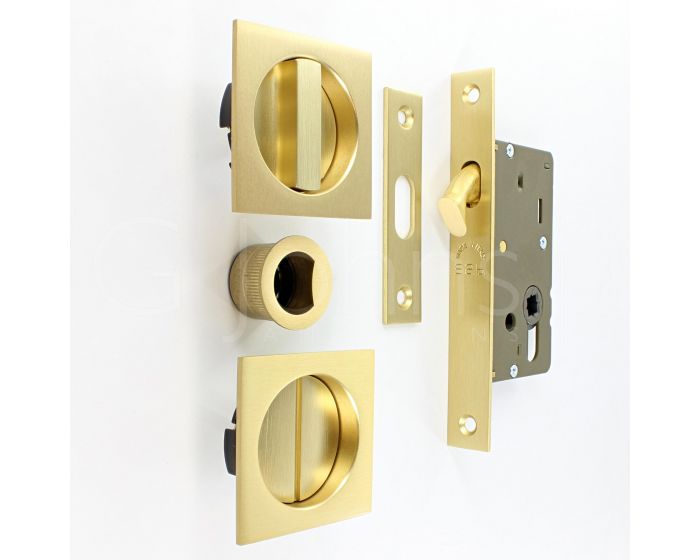

Square Design Bathroom Hook Lock For Sliding Pocket Doors - With Turn And Release - Satin Brass (Lacquered)

Catalogue Number:
44270
Full Description
Product Name Price Qty
44270.1 - Bathroom Hook Lock With Square Turn And Release For Sliding Pocket Doors - Satin Brass (Lacquered) - Set
£96.60 £80.50

Per Set
Add to Mood Board
Enquire Now
  • Satin brass finish flush fitting bathroom hook lock set for sliding pocket doors.
  • Square design flush pulls.
  • Ideal for use on sliding bathroom and toilet doors.
  • Complete kit includes.
    • 1x 57.5mm Deep sliding door bathroom hook lock
    • 1x Flush fitting snib turn and emergency release
    • 1x Edge pull handle to help pull the sliding door out of the wall cavity (pocket).
  • The thumb-turn is fitted to the inside of the sliding door which allows the door to be locked and unlocked.
  • The release part of the lock is fitted on the outside of the sliding door and allows the door to be unlocked in an emergency by using a coin of screw driver.
  • Suitable for use on doors between 35mm to 52mm thick.

Finish

  • Satin brass


Dimensions

  • Lock Case - 57.7mm deep (40mm backset) mortice hook lock.
  • Turn & Release - 55mm x 55mm x 10.5mm depth.
  • Edge Pull - 30mm diameter x 24mm depth.
  • To Suit Door Thickness - 35mm to 52mm thick.



Diagram and dimensions for the SAB bathroom hook lock set for sliding pocket doors

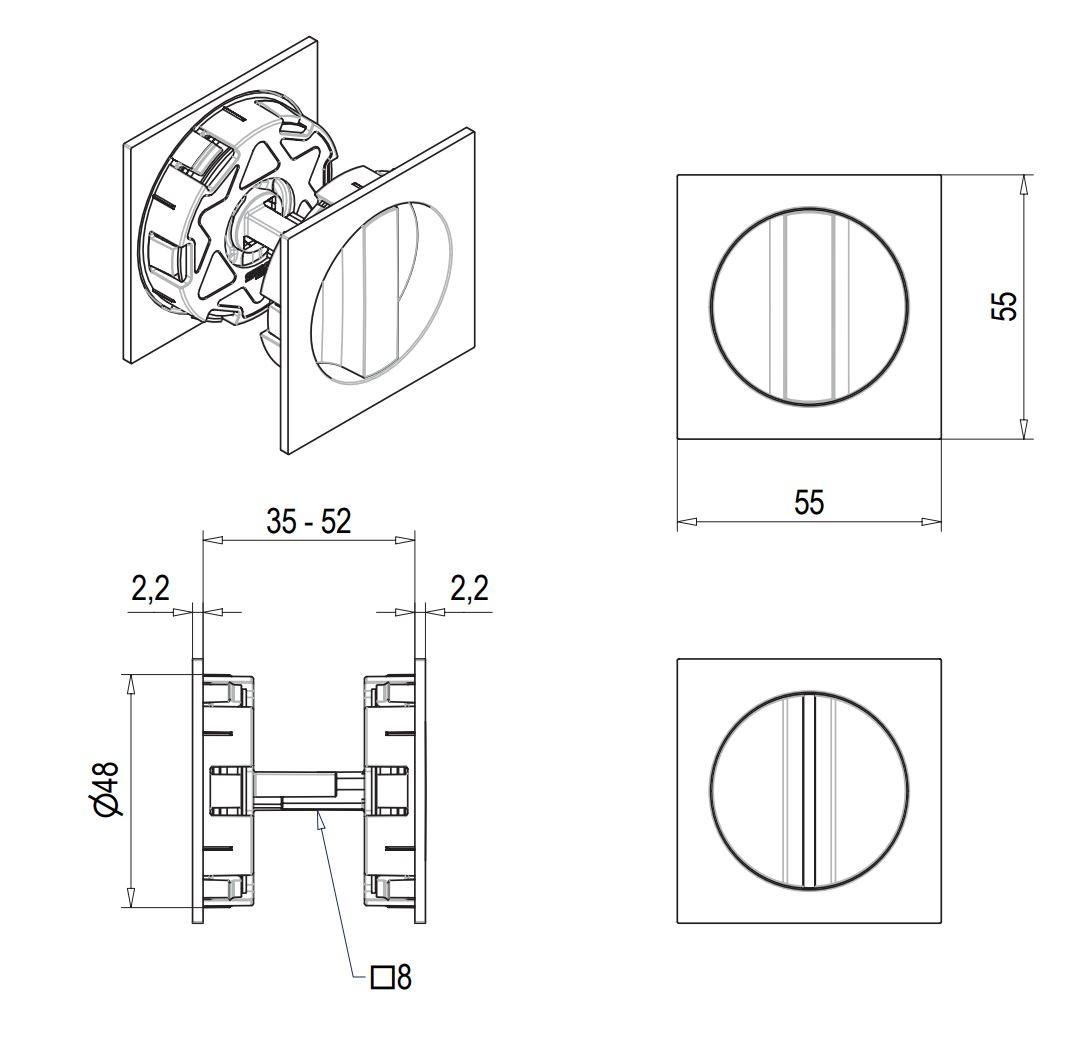

Diagram and dimensions for the square flush turn & release set from SAB bathroom hook lock set for sliding pocket doors
Download PDF Data Sheet
More Information
Item 44270
Item Code 44270
Finish Satin Brass (Lacquered)
Dimensions 40mm Backset Lock - 55mm x 55mm Flush Pulls
Sold Per Set
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
