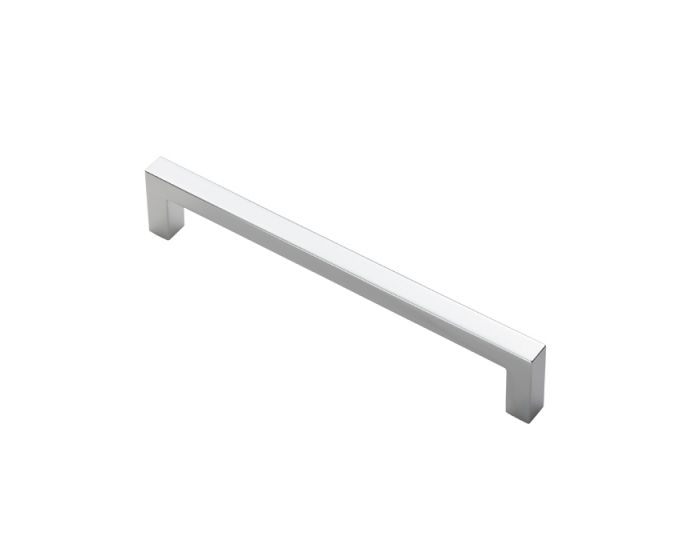

Squared Section Cabinet Pull Handles - Available In Two Sizes - Polished Chrome

Catalogue Number:

48196

Full Description

Product Name Price Qty

48196.1 - Squared Section Cabinet Pull Handles - 170mm length (160mm Fixing Centres) - Polished Chrome - Each

£6.72 £5.60

Per Each

48196.2 - Squared Section Cabinet Pull Handles - 330mm length (320mm Fixing Centres) - Polished Chrome - Each

£13.56 £11.30

Per Each

Enquire Now

Description

Sqaured Section cabinet pull handle

Available in two lengths, 170mm or 330mm

Supplied with M4 fixing bolts.

Simple classic design is ideal for use on modern or traditional units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

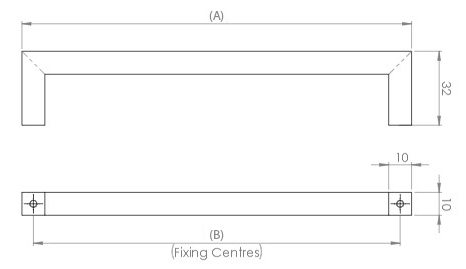

Squared-Section-Cabinet-Pull-Handles-Available-In-Two-Sizes-Diagram

Item code	Overall Length (A)	Fixing Centres (B)	Projection	Bar Diameter
48196.1	170mm	160mm	32mm	10mm
48196.2	330mm	320mm	32mm	10mm

Base Material

Made from zinc alloy

Finish Details

Polished Chrome

Fixings

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.

Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors.

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (Product 30176)

Usage

Suitable for internal use.

Unit Of Sale

This cabinet handle is sold individually - (Each).

Download

Download PDF Data Sheet

Specification

More Information
Item	48196
Item Code	48196
Finish	Polished Chrome
Dimensions	170mm length (160mm Fixing Centres) & 330mm length (320mm Fixing Centres)
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery

Delivery

Non stock product - please allow 3-7 days for delivery
