Surface / Wall Mounted FD30 Fire Rated Sliding Door Track System - For Doors Up To 1500mm Wide & 90kg Weight

Please allow 4-5 weeks for delivery of this product.

• Fire rated sliding door system use with FD30 rated timber fire doors up to 90kg in weight.

• This kit is designed to be wall mounted only and must be installed on the non-fire risk side of an aperture only.

• Each set includes all the main components needed to install a long lasting, smooth running wall mounted fire rated sliding door track.

• Suitable for use with wooden fire doors only,

Fire Rating

• This sliding fire door kit is a system developed as part of a half hour (FD30) sliding fire door assembly, to BS 476: Part 22: 1987 and should be installed on the non-fire risk side of an aperture.

• The assembly must be fitted with a solid core FD30 (or FD60) timber based fire door which has been tested or assessed to BS 476 or CERTIFIRE approved, at the dimensions required.

• Assessment report WFRC No.C116602 confirms that a sliding fire door assembly, fitted in accordance with these instructions, will offer 30 minutes of fire protection in accordance with BS 476: Part 22: 1987, (ref: report Warres No. 40991).

• This kit is not suitable for use on smoke control doors designated FD30S

Intumescent Fire Seals

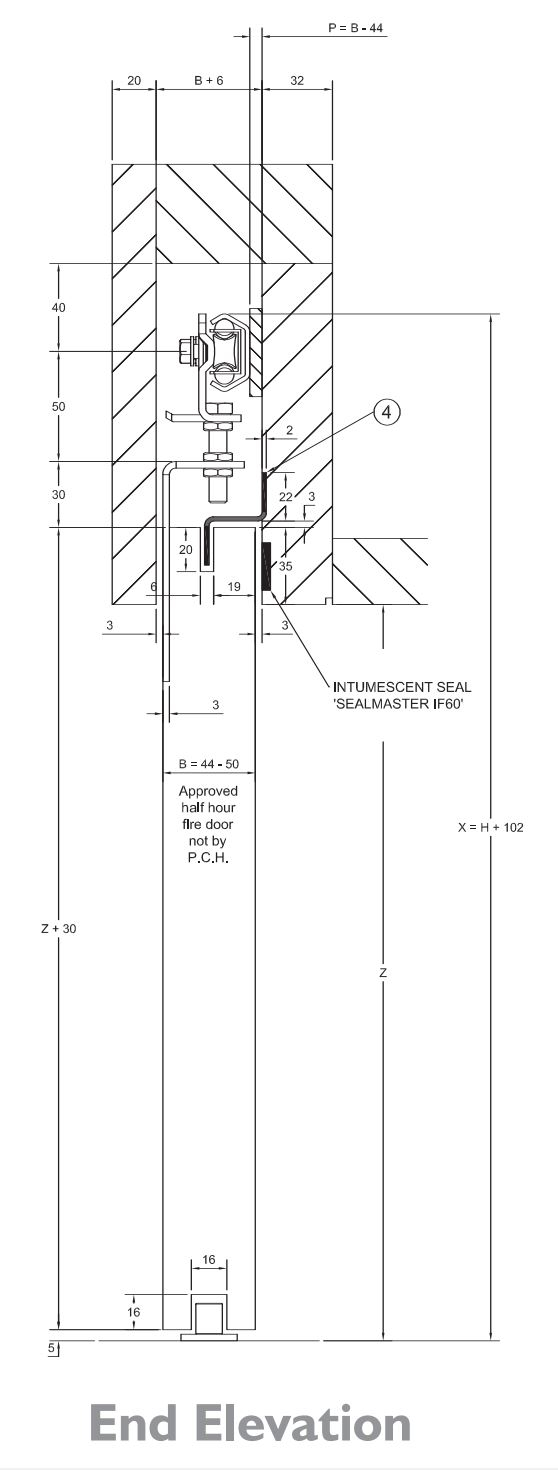

• It is required that intumescent fire seals be incorporated into the door opening framework, to contain the fire within the fire area (see image below).

• Do not use smoke seals (with brushes or rubbers) as this will hinder the sliding action.

• Seals are NOT included with this kit and will need to be purchased separately,

Pelmet / Fascia Requirements

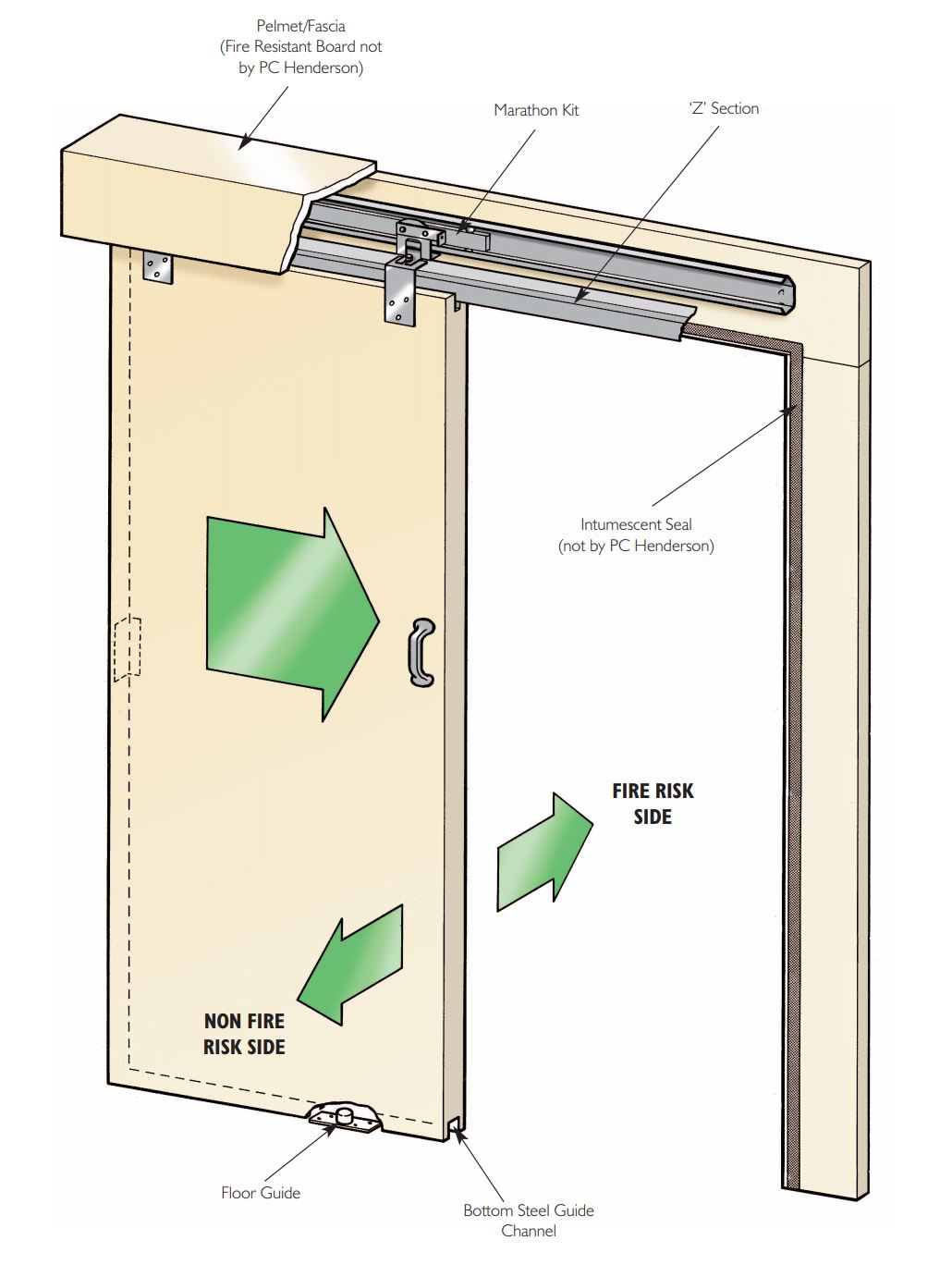

• A custom made "L" section pelmet must be constructed from fire resistant board to cover the top and face of the sliding door track (see image below).

Operation

• Manual sliding door - the user has to push or pull the door open and closed,

Alternative Kit - Self Closing

• For commercial situations we can also supply this kit with a self closing mechanism - see related product - 43526

Suitable For Single Sliding Doors Only

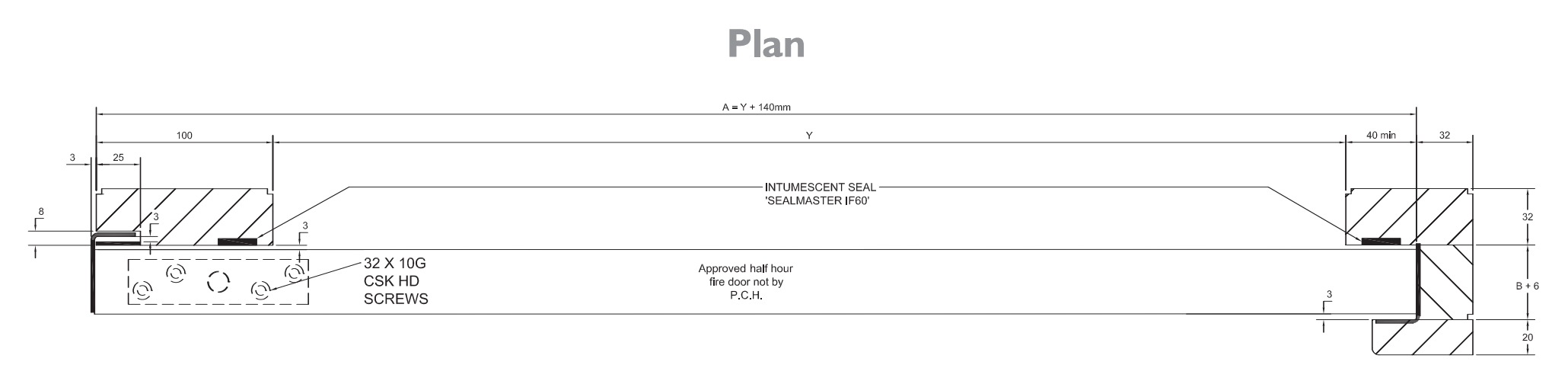

Dimensions And Track Lengths Available

Wall Mounted (Surface) Fixing Only

• To meet the requirements of the fire test report the track must be mounted to the wall on the on the non-fire risk side of an aperture.

Floor Guide

• Supplied with floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.
