T-Bar Shape Guardsman Style Pull Handles - Bolt Through Fixing - Satin Stainless Steel

Catalogue Number:

31218

Full Description

Product Name Price Qty

31218.1 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 325mm Length (225mm Centres) x 19mm Diameter

£9.46 £7.88

Per Each

31218.2 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 400mm Length (300mm Centres) x 19mm Diameter

£11.14 £9.28

Per Each

31218.3 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 1000mm Length (900mm Centres) x 19mm Diameter

£20.50 £17.08

Per Each

31218.4 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 400mm Length (300mm Centres) x 25mm Diameter

£12.94 £10.78

Per Each

31218.5 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 600mm Length (450mm Centres) x 25mm Diameter

£15.67 £13.06

Per Each

31218.6 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 750mm Length (650mm Centres) x 25mm Diameter

£19.34 £16.12

Per Each

31218.7 - T-Bar Pull Handle - Bolt Through - Satin Stainless Steel - 1000mm Length (900mm Centres) x 25mm Diameter

£21.58 £17.98

Per Each

Enquire Now

Description

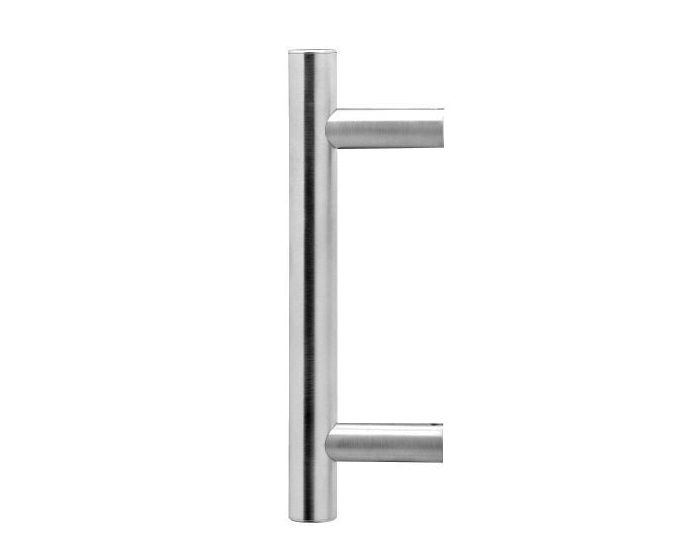

Guardsman style T-Bar shape stainless steel pull handle

Brushed stain stainless steel ideal for internal doors and external entrance doors

Bolt through the door design see below diagram

Diagram showing how a bolt through pull handle fits

Above diagram shows how a bolt through pull handle is fitted to a wooden door

Alternative Fixing Options:

Bolt through fixing with cover caps (where no finger plate is wanted on the reverse side) - see related product - 43478 *ONLY works with 25mm diameter pull handle*

Back to back pair (kit for fitting pull handles to both sides of the door) - see related product - 43480 *ONLY works with 25mm diameter pull handle*

Face fixing with roses (kit for situations where the handle cannot be fixed from the rear) - see related product - 43484.

Finish

Satin stainless steel

Alternative Finishes Available

Polished stainless steel

Dimensions

Item	Bolt centers (A)	Diameter (B)	Projection (C)	Overall Length (D)	Post Diameter (E)
31218.1	225mm	19mm	63mm	325mm	16mm
31218.2	300mm	19mm	63mm	400mm	16mm
31218.3	900mm	19mm	63mm	1000mm	16mm

31218.4	300mm	25mm	70mm	400mm	22mm
31218.5	450mm	25mm	70mm	600mm	22mm
31218.6	650mm	25mm	70mm	750mm	22mm
31218.7	900mm	25mm	70mm	1000mm	22mm

Important Info Before You Buy

Suitable for wooden doors

Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings

Sold Individually

Download

Download PDF Data Sheet

Specification

More Information
Item	31218
Item Code	31218
Finish	Satin Stainless Steel
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
