Traditional Pattern Cranked Design Door Bolt - Two Sizes Available - Black
Catalogue Number:
49188

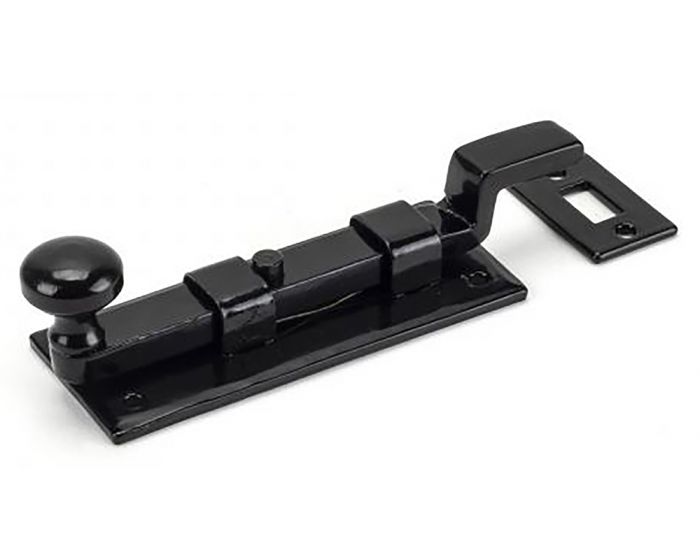

- Traditional pattern cranked design door bolt
- Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts
- Designed for use on French windows (patio doors) or outward opening front doors, back doors and cupboards
Finish
- Black
Dimensions
- Two sizes available

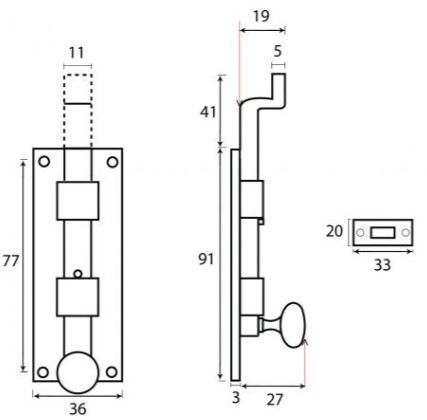

- Fixing Plate: 91mm x 36mm x 3mm
- Receiver Plate: 33mm x 20mm x 2mm
- Throw: 41mm
- Crank Projection: 19mm

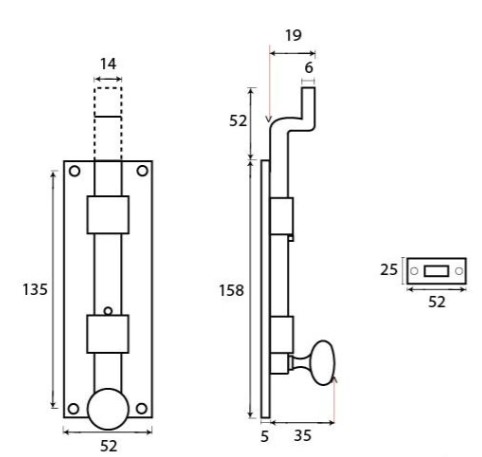

- Fixing Plate: 158mm x 52mm x 5mm
- Receiver Plate: 52mm x 25mm x 3mm
- Throw: 65mm
- Crank Projection: 19mm
Important Info Before You Buy
- Sold individually
- Supplied with matching wood screws
| Item | 49188 |
|---|---|
| Item Code | 49188 |
| Finish | Black |
| Dimensions | 91mm x 36mm & 158mm x 52mm |
| Sold Per | Each |
| Availability | Non stock product - Please allow 3-7 days for delivery |
Non stock product - Please allow 3-7 days for delivery
-
