Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt Black

Catalogue Number:

44810

Product Name Price Qty

44810.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth - (44mm Backset) - Matt Black

£15.20 £12.67

Per Each

44810.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth - (57mm Backset) - Matt Black

£15.20 £12.67

Per Each

44810.3 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 102mm Case Depth (83mm Backset) - Matt Black

£17.89 £14.91

Per Each

44810.4 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 125mm Case Depth (108mm Backset) - Matt Black

£19.43 £16.19

Per Each

Enquire Now

Description

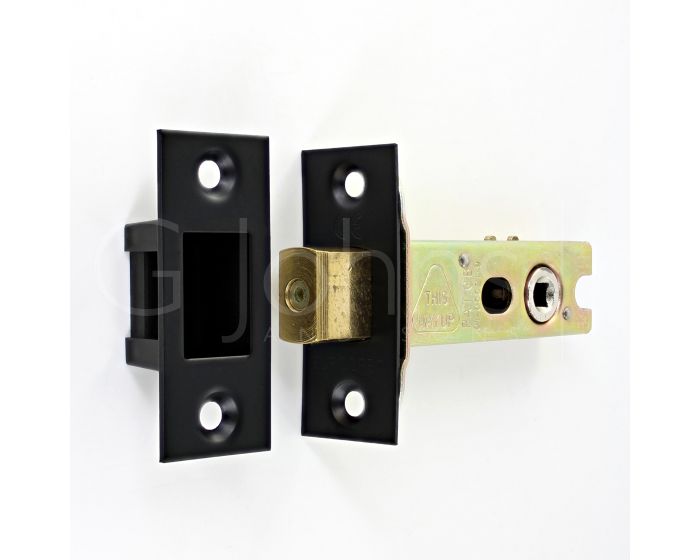

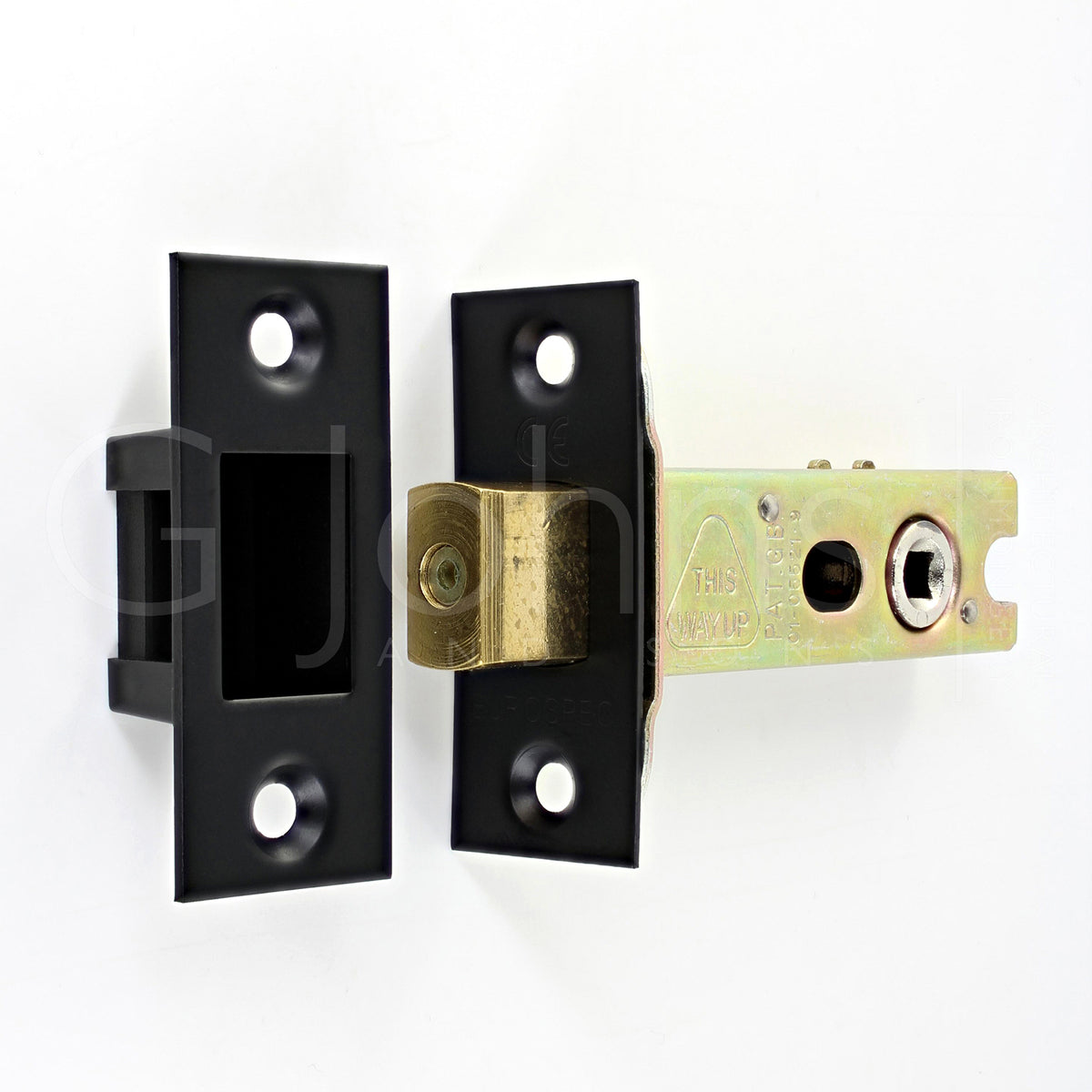

Tubular style mortice deadbolt.

5mm follower designed for used with UK style bathroom turn & release sets.

Twisting the follower a quarter is enough to throw and withdraw the deadbolt.

38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.

Architectural quality.

Designed for use on bathroom doors, WC's and toilet doors

Operation

Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features

Solid brass deadbolt with anti-saw rollers.

Bolt through facility for bolt together fixing furniture with 38mm fixing centres.

5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).

Security Level

Medium security architectural range.

Suitable for use on internal doors in residential, commercial or public buildings.

Finish

Matt black

Dimensions

Available in four different sizes

Available in four sizes

64mm case depth (44mm backset) NOTE THIS LATCH DOES NOT HAVE BOLT HOLES

76mm case depth (57mm backset)

102mm case depth (83mm backset)

127mm case depth (108mm backset)

	44810.1	44810.2	44810.3	44820.4	Dimension On Diagram
Overall Case Depth	64mm	76mm	102mm	127mm	A
Backset (Distance To centre Of Spindle Hole)	44mm	57mm	83mm	108mm	B
Case Height	23mm	23mm	23mm	23mm	C
Forend - Height (H) x Width (W)	60mm x 25mm	60mm x 25mm	60mm x 25mm	60mm x 25mm	D
Strike Plate - Height (H) x Width (W)	65mm x 25mm	65mm x 25mm	65mm x 25mm	65mm x 25mm	E

Options Available To Order

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Unit Of Sale

Each - (1 x latch case supplied with forend and strike plate and black back box liner).

Download

Download PDF Data Sheet

Specification

More Information
Item	44810
Item Code	44810
Finish	Matt Black
Dimensions	64mm, 76mm, 102mm or 125mm Case Depth
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Stock product - please allow 1-3 days for delivery
