Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - Matt White

Catalogue Number:
43934
Full Description Related Products
Product Name Price Qty
43934.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Matt White
£23.04 £19.20

Per Each
43934.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Matt White
£23.04 £19.20

Per Each
Enquire Now

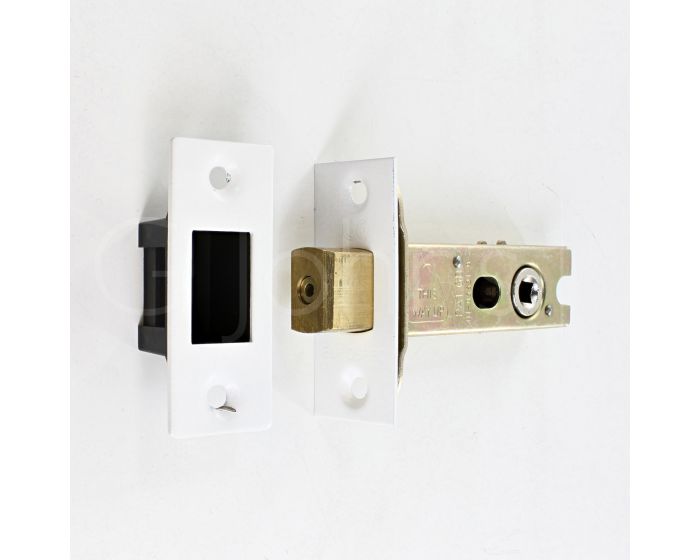

  • Matt white finish tubular style mortice deadbolt.
  • Supplied with a matt white finish forend and frame mounted receiver plate including black plastic back box.
  • 5mm follower designed for used with UK style bathroom turn & release sets.
  • Twisting the follower a quarter is enough to throw and withdraw the deadbolt.
  • 38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.
  • Architectural quality.
  • Designed for use on bathroom doors, WC's and toilet doors
  • Can also be used as a heavy duty security bolt for front and back doors when used in conjunction with the SDB5010SC key and escutcheon pack.

  • Special order - lead time 4-6 weeks.


Operation

  • Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features

  • Solid brass deadbolt with anti-saw rollers.
  • Bolt through facility for bolt together fixing furniture with 38mm fixing centres.
  • 5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).



Security Level

  • Medium security architectural range.
  • Suitable for use on internal doors in residential, commercial or public buildings.

Finish

  • Matt white

Dimensions

Diagram and dimensions of a easi-t mortice deadbolt
Item CodeCase Depth (A)Backset To Follower (B)
43934,1 64mm 44mm
43934.2 76mm 57mm

Standards This Product Conforms To

  • Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F-BG00.
  • Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
  • Certifire approved.
  • CE Marked / UKCA Marked.
  • Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

  • This dead bolt is also available to order with radius (rounded shape) forend and receiver plates. Please contact us for lead times and prices.
  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Unit Of Sale

  • Each - (1 x dead bolt supplied with forend, receiver plate and plastic back box).
More Information
Item 43934
Item Code 43934
Finish Matt White
Dimensions 64mm or 76mm Case Depth
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
