Zero Clearance Low Headroom Sliding Door Track Kit - For Timber Doors Up To 80kg In Weight

• Zero clearance sliding door system is designed for use on timbers doors up to 80kg in weight.

• Low headroom solution, the door hangers are rebated into the top of the door allowing the door to between 2.5mm - 5mm below the bottom of the track.

• Pre-finished track and small distance from the top of the door to the bottom of the track means no pelmet is required,

• Track can be rebated into the ceiling to create a discrete sliding door.

• Suitable for use for sliding doors between rooms, wall openings or entrances.

• Each set includes all the main components needed to install a long lasting, smooth running soffit (ceiling) mounted zero clearance sliding door track.

• Anodised aluminium pre-drilled track for a durable, long lasting finish and easy installation.

• Suitable for wooden doors only.

Single Sliding Doors

Double Bi-Parting Doors

• For doors up to 750mm wide a 3000mm track can be purchased with the extra door hanging kit - Product 44726.1

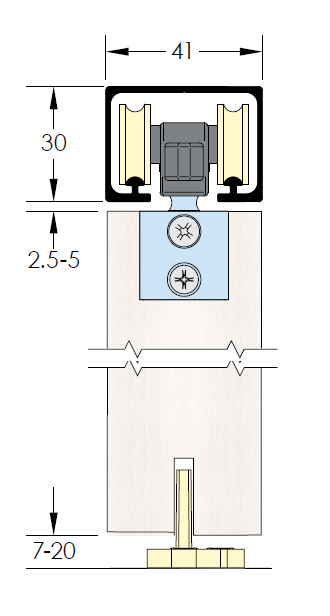

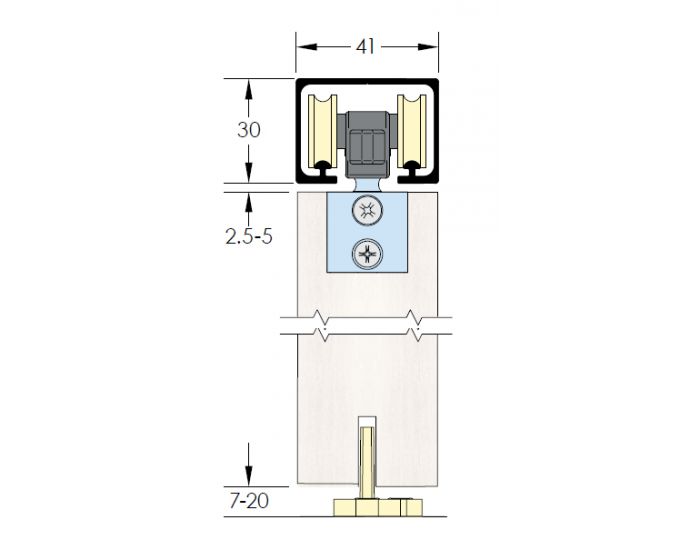

Dimensions And Track Lengths Available

Fixing Options

• Designed for ceiling / soffit mounting only.

Rebated Door Hangers

• To achieve the small clearance between the track and the door, the door hangers are rebated (concealed) into the top of the door.

Floor Guide

• The zero clearance low headroom sliding door kit comes complete with a "T" shape floor guide, fixed to the floor next to the door frame, this helps to guide the door insuring it runs straight.

Items Included Within The Zero Clearance Sliding Door Kit

• 1x Pre-drilled anodised aluminium track
• 2x concealed roller carriages
• 2x Door Stoppers
• 1x floor guide
